Reply #195 on: February 14, 2021, 06:16:14 AM
deadwood I tried the first two iso DEV-3 / DEV-4 now I no longer have cd to burn, however in these two isos the pendrives / hd do not work


deadwood

  • AROS Developer
  • Legendary Member
  • *****
    • Posts: 1524
    • Karma: +118/-0
Reply #196 on: February 14, 2021, 06:21:58 AM
Can you boot from DEV-3 and DEV-4 and capture sashimi output as you insert pendrive?


Amiwell

  • Legendary Member
  • *****
    • Posts: 2616
    • Karma: +35/-4
  • Peace
Reply #197 on: February 14, 2021, 06:53:47 AM
ok


Amiwell

  • Legendary Member
  • *****
    • Posts: 2616
    • Karma: +35/-4
  • Peace
Reply #198 on: February 14, 2021, 07:06:53 AM
i can't debug deadwood, an infinite series of strings comes out in the sashimi output window


aGGreSSor

  • Member
  • ***
    • Posts: 184
    • Karma: +25/-0
    • russian transit
Reply #199 on: February 14, 2021, 08:07:31 AM


deadwood

  • AROS Developer
  • Legendary Member
  • *****
    • Posts: 1524
    • Karma: +118/-0
Reply #200 on: February 14, 2021, 08:15:47 AM
@aGGreSSor

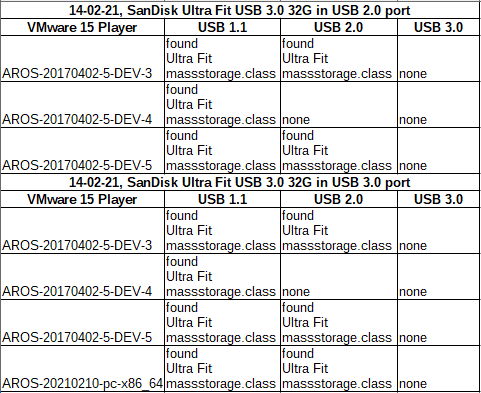

Thanks for tests. What is the difference between first and second test - both seems to be using same USB drive and same VMWare 15 Player?


deadwood

  • AROS Developer
  • Legendary Member
  • *****
    • Posts: 1524
    • Karma: +118/-0
Reply #201 on: February 14, 2021, 08:17:59 AM
Quote from: salvo on February 14, 2021, 07:06:53 AM
i can't debug deadwood, an infinite series of strings comes out in the sashimi output window

Please start sashimi from shell like this:

sashimi > ram:out.txt

And them upload somewhere the resulting text file for me to examine.


aGGreSSor

  • Member
  • ***
    • Posts: 184
    • Karma: +25/-0
    • russian transit
Reply #202 on: February 14, 2021, 08:34:00 AM
Quote from: deadwood on February 14, 2021, 08:15:47 AM
@aGGreSSor
Thanks for tests. What is the difference between first and second test - both seems to be using same USB drive and same VMWare 15 Player?
My motherboard (Gigabyte H370M DS3H) has USB 2.0 (black) and USB 3.0 ports (blue).
I tried in 1st test with USB 2.0 port and 2nd test with USB 3.0 port.


deadwood

  • AROS Developer
  • Legendary Member
  • *****
    • Posts: 1524
    • Karma: +118/-0
Reply #203 on: February 14, 2021, 08:42:43 AM
Now I see, thanks


deadwood

  • AROS Developer
  • Legendary Member
  • *****
    • Posts: 1524
    • Karma: +118/-0
Reply #204 on: February 14, 2021, 09:02:03 AM
@aGGreSSor

Can you capture sashimi output from DEV-4 and 2.0 port when pluggin in USB drive?


deadwood

  • AROS Developer
  • Legendary Member
  • *****
    • Posts: 1524
    • Karma: +118/-0
Reply #205 on: February 14, 2021, 09:26:37 AM
@aGGreSSor

Can you try DEV-6:

https://axrt.org/development/AROS-20170402-5-DEV-6-pc-i386-boot-iso.zip

If your disk in 2.0 port still does not work, can you capture debug?


aGGreSSor

  • Member
  • ***
    • Posts: 184
    • Karma: +25/-0
    • russian transit
Reply #206 on: February 14, 2021, 09:27:58 AM
Quote from: deadwood on February 14, 2021, 09:02:03 AM
@aGGreSSor

Can you capture sashimi output from DEV-4 and 2.0 port when pluggin in USB drive?
Quote from: deadwood on February 14, 2021, 08:17:59 AM
Please start sashimi from shell like this:
sashimi > ram:out.txt
And them upload somewhere the resulting text file for me to examine.
Sashimi, little information is recorded.
VMware 15 in USB 3.0 mode, DEV-5
Code: [Select]
INT=C008
INT=C008
INT=C008
INT=C008
INT=C008
Sashimi installed ([Ctrl]+C or "Break 1" to remove)
Sashimi removed.
VMware 15 in USB 2.0 mode, DEV-4
Code: [Select]
INT=C004
ehciIntCode/1240: PCI Int Port 1 Change 00001003
ehciIntCode/1240: PCI Int Port 2 Change 00001000
ehciIntCode/1240: PCI Int Port 3 Change 00001000
ehciIntCode/1240: PCI Int Port 4 Change 00001000
ehciIntCode/1240: PCI Int Port 5 Change 00001000
ehciIntCode/1240: PCI Int Port 6 Change 00001000
hub_nHubTask/535: Port changed at 00000002, Numports=6!
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 0109e688, 4)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
hub_nConfigurePort/1148: Configuring port 1 of hub 0x0102f204
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 0109e5ec, 4)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
hub_nConfigurePort/1160: Status 0x0101, change 0x0000
hub_nConfigurePort/1182: There's something at port 1!
hub_nConfigurePort/1186: A
hub_nConfigurePort/1195: B
hub_nConfigurePort/1202: C
hub_nConfigurePort/1204: C1
hub_nConfigurePort/1207: C2
hub_nConfigurePort/1210: C3
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=3
hub_nConfigurePort/1212: C4
hub_nConfigurePort/1218: PORT_RESET failed 3.
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
hub_nConfigurePort/1375: Y
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
hub_nConfigurePort/1388: Z
  psd_28_psdSendPipe/4179: psdSendPipe(0102f344, 0102f26c, 1)
INT=C008
INT=C008
INT=C008
INT=C004
ehciIntCode/1240: PCI Int Port 1 Change 0000110A
ehciIntCode/1240: PCI Int Port 2 Change 00001000
ehciIntCode/1240: PCI Int Port 3 Change 00001000
ehciIntCode/1240: PCI Int Port 4 Change 00001000
ehciIntCode/1240: PCI Int Port 5 Change 00001000
ehciIntCode/1240: PCI Int Port 6 Change 00001000
hub_nHubTask/535: Port changed at 00000002, Numports=6!
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 0109e688, 4)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_28_psdSendPipe/4179: psdSendPipe(0102f344, 0102f26c, 1)
INT=C004
ehciIntCode/1240: PCI Int Port 1 Change 00001103
ehciIntCode/1240: PCI Int Port 2 Change 00001000
ehciIntCode/1240: PCI Int Port 3 Change 00001000
ehciIntCode/1240: PCI Int Port 4 Change 00001000
ehciIntCode/1240: PCI Int Port 5 Change 00001000
ehciIntCode/1240: PCI Int Port 6 Change 00001000
hub_nHubTask/535: Port changed at 00000002, Numports=6!
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 0109e688, 4)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
INT=C004
ehciIntCode/1240: PCI Int Port 1 Change 0000110A
ehciIntCode/1240: PCI Int Port 2 Change 00001000
ehciIntCode/1240: PCI Int Port 3 Change 00001000
ehciIntCode/1240: PCI Int Port 4 Change 00001000
ehciIntCode/1240: PCI Int Port 5 Change 00001000
ehciIntCode/1240: PCI Int Port 6 Change 00001000
hub_nConfigurePort/1148: Configuring port 1 of hub 0x0102f204
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 0109e5ec, 4)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
hub_nConfigurePort/1160: Status 0x0110, change 0x0003
hub_nConfigurePort/1388: Z
  psd_28_psdSendPipe/4179: psdSendPipe(0102f344, 0102f26c, 1)
hub_nHubTask/535: Port changed at 00000002, Numports=6!
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 0109e688, 4)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_28_psdSendPipe/4179: psdSendPipe(0102f344, 0102f26c, 1)
INT=C008
INT=C008
INT=C008
INT=C008
INT=C008
INT=C004
ehciIntCode/1240: PCI Int Port 1 Change 00001103
ehciIntCode/1240: PCI Int Port 2 Change 00001000
ehciIntCode/1240: PCI Int Port 3 Change 00001000
ehciIntCode/1240: PCI Int Port 4 Change 00001000
ehciIntCode/1240: PCI Int Port 5 Change 00001000
ehciIntCode/1240: PCI Int Port 6 Change 00001000
hub_nHubTask/535: Port changed at 00000002, Numports=6!
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 0109e688, 4)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
INT=C008
hub_nConfigurePort/1148: Configuring port 1 of hub 0x0102f204
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 0109e5ec, 4)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
hub_nConfigurePort/1160: Status 0x0111, change 0x0000
hub_nConfigurePort/1182: There's something at port 1!
hub_nConfigurePort/1186: A
hub_nConfigurePort/1195: B
hub_nConfigurePort/1202: C
hub_nConfigurePort/1204: C1
hub_nConfigurePort/1207: C2
hub_nConfigurePort/1210: C3
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=3
hub_nConfigurePort/1212: C4
hub_nConfigurePort/1218: PORT_RESET failed 3.
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
hub_nConfigurePort/1375: Y
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
  psd_27_psdDoPipe/4140: psdDoPipe(0102f294, 00000000, 0)
  psd_30_psdWaitPipe/4295: psdWaitPipe(0102f294)=0
hub_nConfigurePort/1388: Z
  psd_28_psdSendPipe/4179: psdSendPipe(0102f344, 0102f26c, 1)
INT=C008
Sashimi installed ([Ctrl]+C or "Break 8" to remove)
Sashimi removed.

By the way, InstallAROS doesn't copy "Development" directory when it checked.
In ISO-files of the directory "Development" corresponds to the icon "Developer.info".
Also there isn't enough curl utility to transfer the report outside.


deadwood

  • AROS Developer
  • Legendary Member
  • *****
    • Posts: 1524
    • Karma: +118/-0
Reply #207 on: February 14, 2021, 09:33:39 AM
Ok, it's like I though - port reset failed. I'm interested to see what DEV-6 shows.

Thanks for report on InstallAROS, I will fix that.


aGGreSSor

  • Member
  • ***
    • Posts: 184
    • Karma: +25/-0
    • russian transit
Reply #208 on: February 14, 2021, 09:36:30 AM
Quote from: deadwood on February 14, 2021, 09:26:37 AM
@aGGreSSor
Can you try DEV-6:
https://axrt.org/development/AROS-20170402-5-DEV-6-pc-i386-boot-iso.zip
If your disk in 2.0 port still does not work, can you capture debug?
DEV-6 found pen only with USB 1.1 and none in USB 2.0 and USB 3.0.

USB 3.0 mode
Code: [Select]
INT=C008
INT=C008
INT=C008
INT=C008
INT=C008
Sashimi installed ([Ctrl]+C or "Break 1" to remove)
Sashimi removed.

USB 2.0 mode
Code: [Select]
INT=C004
ehciIntCode/1240: PCI Int Port 1 Change 00001003
ehciIntCode/1240: PCI Int Port 2 Change 00001000
ehciIntCode/1240: PCI Int Port 3 Change 00001000
ehciIntCode/1240: PCI Int Port 4 Change 00001000
ehciIntCode/1240: PCI Int Port 5 Change 00001000
ehciIntCode/1240: PCI Int Port 6 Change 00001000
hub_nHubTask/535: Port changed at 00000002, Numports=6!
hub_nConfigurePort/1148: Configuring port 1 of hub 0x0102f204
hub_nConfigurePort/1160: Status 0x0101, change 0x0000
hub_nConfigurePort/1182: There's something at port 1!
hub_nConfigurePort/1186: A
hub_nConfigurePort/1195: B
hub_nConfigurePort/1202: C
hub_nConfigurePort/1204: C1
hub_nConfigurePort/1207: C2
hub_nConfigurePort/1210: C3
cmdControlXFerRootHub/796: EHCI: Resetting Port (ok)
cmdControlXFerRootHub/799: EHCI: Port status=00001001
cmdControlXFerRootHub/805: EHCI: Reset=BAD!
cmdControlXFerRootHub/810: EHCI: Reset=BAD!
cmdControlXFerRootHub/811: EHCI: Highspeed=NO
cmdControlXFerRootHub/812: EHCI: Port status=00001101
cmdControlXFerRootHub/816: EHCI: Transferring ownership to UHCI/OHCI port 0
cmdControlXFerRootHub/821: EHCI has no companion controller, can't transfer ownership!
hub_nConfigurePort/1212: C4
hub_nConfigurePort/1218: PORT_RESET failed 3.
hub_nConfigurePort/1375: Y
hub_nConfigurePort/1388: Z
INT=C008
INT=C008
INT=C008
INT=C008
INT=C008
Sashimi installed ([Ctrl]+C or "Break 1" to remove)
Sashimi removed.
« Last Edit: February 14, 2021, 09:47:27 AM by aGGreSSor »


deadwood

  • AROS Developer
  • Legendary Member
  • *****
    • Posts: 1524
    • Karma: +118/-0
Reply #209 on: February 14, 2021, 09:53:29 AM


Pages: 1 ... 12 13 14 15 16 ... 19   Go Up
« previous next »
